PPBS (Flame Retardant Polypropylene) AHW Profile |
|
|

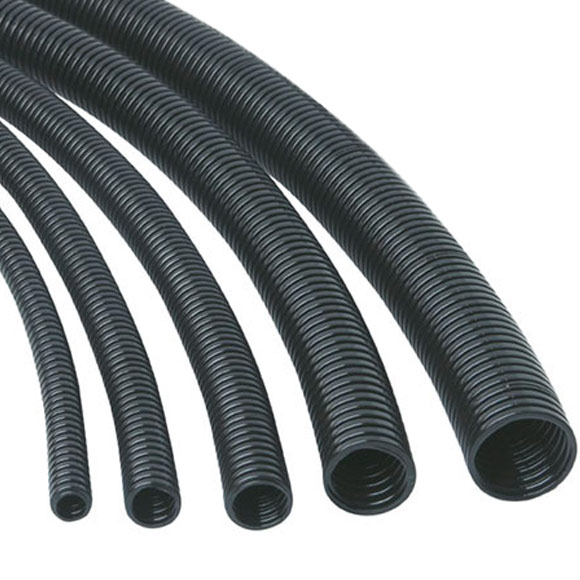

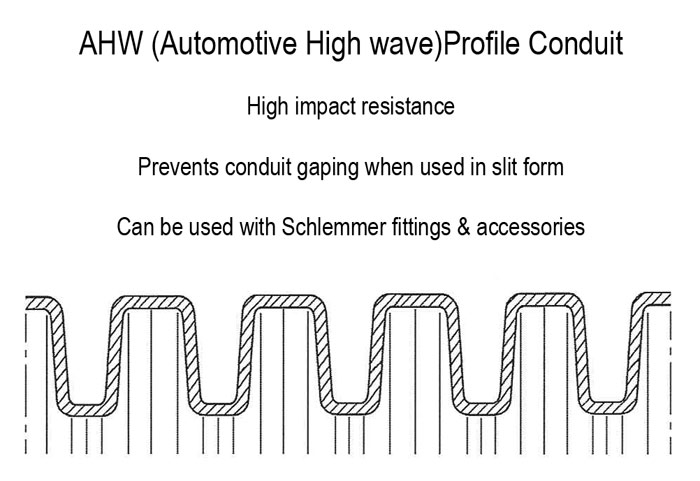

Description/Application: A flexible conduit manufactured from PPBS material, suitable for harness protection on a variety of vehicle applications,but specifically the vehicle interior, chassis and body sections. In slit form this product does not gape open to expose wires when bent back on itself. Technical Specification Profile: AHW (Automotive High Wave) Colour: Black Material: Flame Retardent Polypropylene Temperature Range: -40ºC to +125ºC Maximum Temperature: 500 hours at +135°C and 240 hours at +150°C Burning Behaviour: according to FMVSS 302, self extinguishing Type B (for corrugated tubes) UV Resistance: according to DIN EN ISO 8580 Other Features: Flame retardant, high cold impact strength and highly flexible. |
Product Prices & Dimensions
| Part No | Nominal Size (NW) | Type | Dimensions (mm) I.D. X O.D. |
Qty Per Coil (m) | List Price (exc VAT) |
|---|---|---|---|---|---|
| 1930004 | 4.5 | Unslit | 5.0 x 7.1 | 100 | £48.60 /100 |
| 1930007 | 7.5 | Unslit | 6.9 x 9.9 | 50 | £60.03 /100 |
| 1929008 | 8.5 | Unslit | 8.5 x 12.9 | 50 | £64.30 /100 |
| 1929011 | 11 | Unslit | 11.1 x 15.7 | 50 | £81.51 /100 |
| 1929015 | 15 | Unslit | 15.0 x 21.2 | 50 | £156.86 /100 |
| 1929019 | 19 | Unslit | 19.1 x 25.7 | 50 | £134.75 /100 |
| 1929027 | 26 | Unslit | 26.3 x 31.4 | 25 | £207.09 /100 |
| 1930304 | 4.5 | Slit | 5.0 x 7.1 | 100 | £51.61 /100 |
| 1930307 | 7.5 | Slit | 6.9 x 9.9 | 50 | £63.92 /100 |
| 1929308 | 8.5 | Slit | 8.5 x 12.9 | 50 | £78.87 /100 |
| 1929311 | 11 | Slit | 11.1 x 15.7 | 50 | £86.14 /100 |
| 1929315 | 15 | Slit | 15.0 x 21.2 | 50 | £138.88 /100 |
| 1929319 | 19 | Slit | 19.1 x 25.7 | 50 | £155.10 /100 |
| 1929334 | 34 | Slit | 34.1 x 39.5 | 25 | £238.73 /100 |
