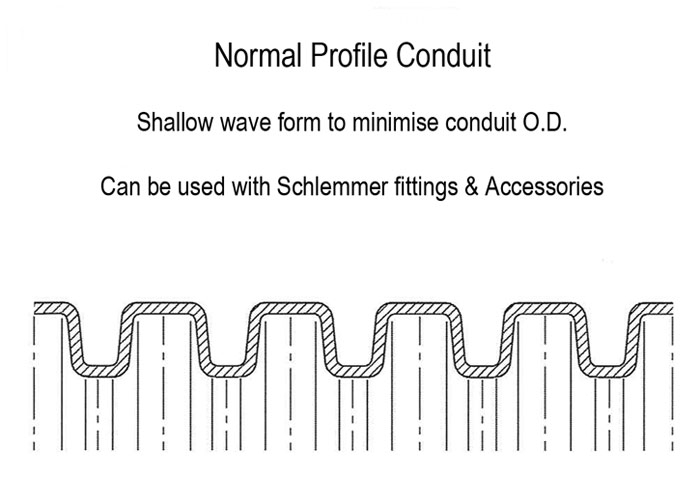

PFA (High Temperature +260ºC) Normal Profile |
|
|

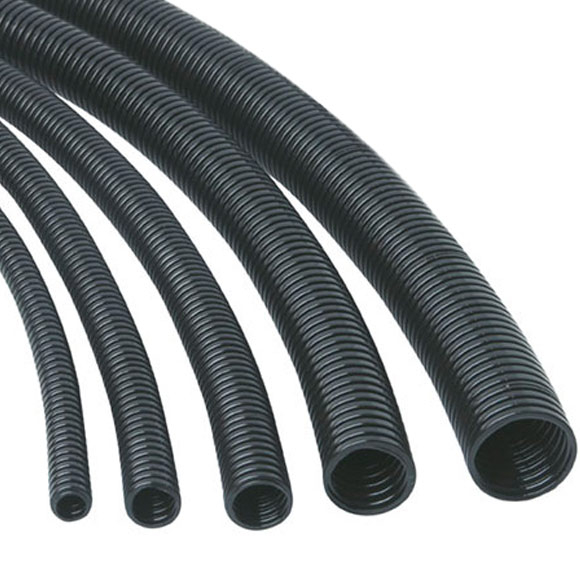

Description/Application: A flexible conduit manufactured from PFA material, suitable for harness protection on vehicle applications where extreme temperatures can be found.
Technical Specification Profile: Normal Colour: Black Material: PFA Temperature Range: -40ºC to +260ºC Maximum Temperature: 500 hours at +280°C Burning Behaviour: complies to FMVSS 302, self-extinguishing & also to UL 94: V0 |
Product Prices & Dimensions
| Part No | Nominal Size (NW) | Type | Dimensions (mm) I.D. X O.D. |
Qty Per Coil (m) | List Price (exc VAT) |
|---|---|---|---|---|---|
| 1291107 | 7.5 | Unslit | 6.9 x 10.0 | 50 | £1141.52 /100 |
| 1291110 | 10 | Unslit | 10.0 x 13.2 | 50 | £2083.88 /100 |
| 1291113 | 13C | Unslit | 12.5 x 16.0 | 50 | £2975.62 /100 |
| 1291117 | 17C | Unslit | 16.6 x 21.1 | 50 | £3841.12 /100 |
| 1291122 | 22C | Unslit | 20.1 x 25.0 | 50 | £5009.38 /100 |
| 1291007 | 7.5 | Slit | 6.9 x 10.0 | 50 | £1141.52 /100 |
| 1291008 | N/A | N/A | N/A | N/A | £1983.53 /100 |
| 1291010 | 10 | Slit | 10.0 x 13.2 | 50 | £2083.88 /100 |
| 1291013 | 13C | Slit | 12.5 x 16.0 | 50 | £1903.28 /100 |
| 1291017 | 17C | Slit | 16.6 x 21.1 | 50 | £3841.12 /100 |
| 1291022 | 22C | Slit | 20.1 x 25.0 | 50 | £3219.62 /100 |
